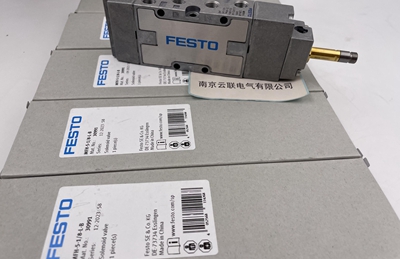

FESTO 電磁閥MFH-5-1/8-L-B

FESTO 電磁閥MFH-5-1/8-L-B

閥功能

兩位五通，單穩態

標準額定流量（根據 DIN 1343 標準化）

1000 l/min

氣接口，氣口 1

G1/8

驅動方式

電控

閥功能

兩位五通，單穩態

驅動方式

電控

寬度

26 mm

標準額定流量（根據 DIN 1343 標準化）

1000 l/min

工作氣口

G1/8

工作壓力

0.3 Mpa ... 1 Mpa

工作壓力

3 bar ... 10 bar

結構特點

活塞閘閥

復位類型

氣動彈簧

公稱通徑

8 mm

密封原理

軟密封

安裝位置

可選

FESTO solenoid valve MFH-5-1/8-L-B

Valve function

Two position five way, monostable state

Standard rated flow (standardized according to DIN 1343)

1000 l/min

Air interface, air port 1

G1/8

Driving method

Electric control

Valve function

Two position five way, monostable state

Driving method

Electric control

width

26 mm

Standard rated flow (standardized according to DIN 1343)

1000 l/min

Working air port

G1/8

working pressure

0.3 Mpa 1 Mpa

working pressure

3 bar 10 bar

Structural characteristics

Piston gate valve

Reset type

Pneumatic spring

Nominal diameter

8 mm

Sealing principle

Soft sealing

Installation location

Optional
