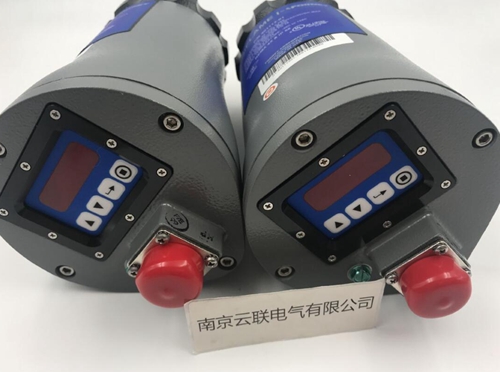

福尼Forney火檢探頭UniFlame II 系列

福尼Forney火檢探頭UniFlame  II 系列基于微處理器的控制器與固態紅外（IR）和紫外線（UV）傳感器以及雙電池技術結合使用，以實現火焰探測和識別。

產品和配件：
UniFlame II?部分＃401116-01
UniFlame II CEX?部分＃401117-01
UniFlame II Wireless CEX?部分＃401118-01
不帶連接器（內部接線盒）的UniFlame II，零件＃401116-11
用于UniFlame I改造的UniFlame II（1-12針快速斷開連接器）零件＃401116-10
FEX軟件部件號401116-04
可旋轉安裝的零件號＃91016-63
安裝法蘭1” NPT零件＃400487-01 1” BSP零件＃400487-06
電纜8芯快速連接部件＃401119-xx散裝電纜部件＃401119-00
電纜12芯快速連接部件＃401120-xx散裝電纜部件＃401120-00
操作員界面：帶有五個按鈕的字母數字顯示（部件號401116-03）或
與手持通訊工具（零件號118118-04）一起使用的紅外發射器（零件號401118-03）。
UniFlame I到UniFlame II的轉換盒部件號92527-03
線束零件號92527-04
UniFlame II冷卻室標準版零件＃92527-01 CEX版零件零件＃92527-02
機械規格：

外殼材料：鑄鋁，灰色聚酯粉末涂層
外殼重量：5.9磅（2.69千克），7.1磅（3.22千克）CEX型號，附加法蘭
環境：NEMA 4X，IP66
區域分類：標準：I類Div 2，A，B，C，D組，
II類Div 2，F(xiàn)＆G組
CEX版本：Ex d IIC T6
安裝：需要兩個螺紋安裝法蘭之一，單獨訂購
– 1英寸NPT內螺紋管道安裝件，帶有3/8英寸NPT內冷卻空氣接口。
– 1英寸BSP內螺紋管道安裝件，帶有3/8英寸BSP內冷卻空氣接口。
兩個法蘭都包含一個一體的絕熱內螺紋插件（不需要絕熱接頭）。
安裝法蘭重量：0.62磅（0.28kg）

The UniFlame II series microprocessor-based controller of Forney flame detection probe is used in combination with solid-state infrared (IR) and ultraviolet (UV) sensors and dual battery technology to achieve flame detection and recognition.

Products and accessories:

UniFlame II ? Part # 401116-01

UniFlame II CEX ? Part # 401117-01

UniFlame II Wireless CEX ? Part # 401118-01

UniFlame II without connector (internal junction box), part # 401116-11

UniFlame II (1-12 pin quick disconnect connector) for UniFlame I modification Part # 401116-10

FEX software part No. 401116-04

Rotatable Mounting Part # 91016-63

Mounting flange 1 "NPT part # 400487-01 1" BSP part # 400487-06

Cable 8-core quick connection part # 401119 xx Bulk cable part # 401119-00

Cable 12 core quick connect part # 401120 xx Bulk cable part # 401120-00

Operator interface: alphanumeric display with five buttons (part number 401116-03) or

Infrared transmitter (part number 401118-03) for use with hand-held communication tool (part number 118118-04).

UniFlame I to UniFlame II conversion box part number 92527-03Harness part number 92527-04

UniFlame II cooling chamber standard version part # 92527-01 CEX version part # 92527-02

Mechanical specifications:

Shell material: cast aluminum, gray polyester powder coating

Shell weight: 5.9 lbs (2.69 kg), 7.1 lbs (3.22 kg) CEX model, additional flange

Environment: NEMA 4X, IP66

Area classification: Standard: Class I Div 2, Groups A, B, C, D,

Div 2, Group F&G, Class II

CEX Version: Ex d IIC T6

Installation: One of two threaded mounting flanges is required, order separately

– 1-inch NPT female pipe mount with 3/8-inch NPT internal cooling air connection.

– 1-inch BSP female pipe mount with 3/8-inch BSP internal cooling air connection.

Both flanges contain an integral thermal insulation internal thread insert (thermal insulation joint is not required).

Weight of mounting flange: 0.62 lb (0.28 kg)
